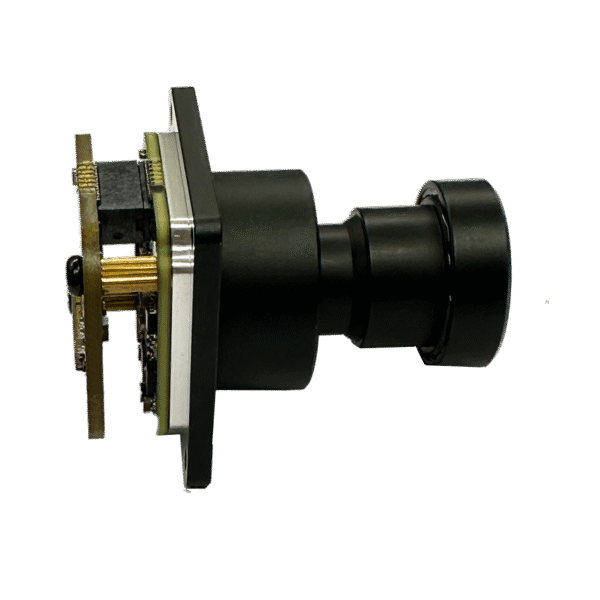

5.1MP Global Shutter MIPI Camera
$399.00
Available on backorder
For high volume order, please email sales@leopardimaging.com
| Sony Diagonal 8.8 mm CMOS Pregius S Image Sensor IMX568 | |
| Color sensor | |
| Global shutter | |
| Interface: MIPI output | |
| Active Pixels: | 2472 (H) × 2064 (V) |
| Pixel Size: | 2.74 x 2.74 μm |
| Effective Focal Length: | 3.939 mm |
| FOV H: | 105˚ |
If you need to download the driver, please contact:support@leopardimaging.com
FA Cameras
ITS Cameras
IoT
Robots
This camera is compatible with our USB 3.0 Tester, Raspberry Pi 5, and Nvidia Jetson platforms.
| AGX Thor | AGX Orin | Orin NX | Orin Nano | AGX Xavier | Xavier NX | Nano | TX2 | TX1 | USB3.0 | Raspberry Pi5 | RB3 Gen2 | IQ-9075 EVK |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N/A | ✔ | ✔ | ✔ | N/A | N/A | N/A | N/A | N/A | ✔ | ✔ | N/A | N/A |
Please notice that some of the Jetson platforms use our carrier boards instead of Jetson DevKit, and Raspberry Pi5 platform need use our adapter boards.
For detailed Jetson driver with Jetpack version list: Click here
| Nvidia JETSON Camera Kit: | Coming soon… |
