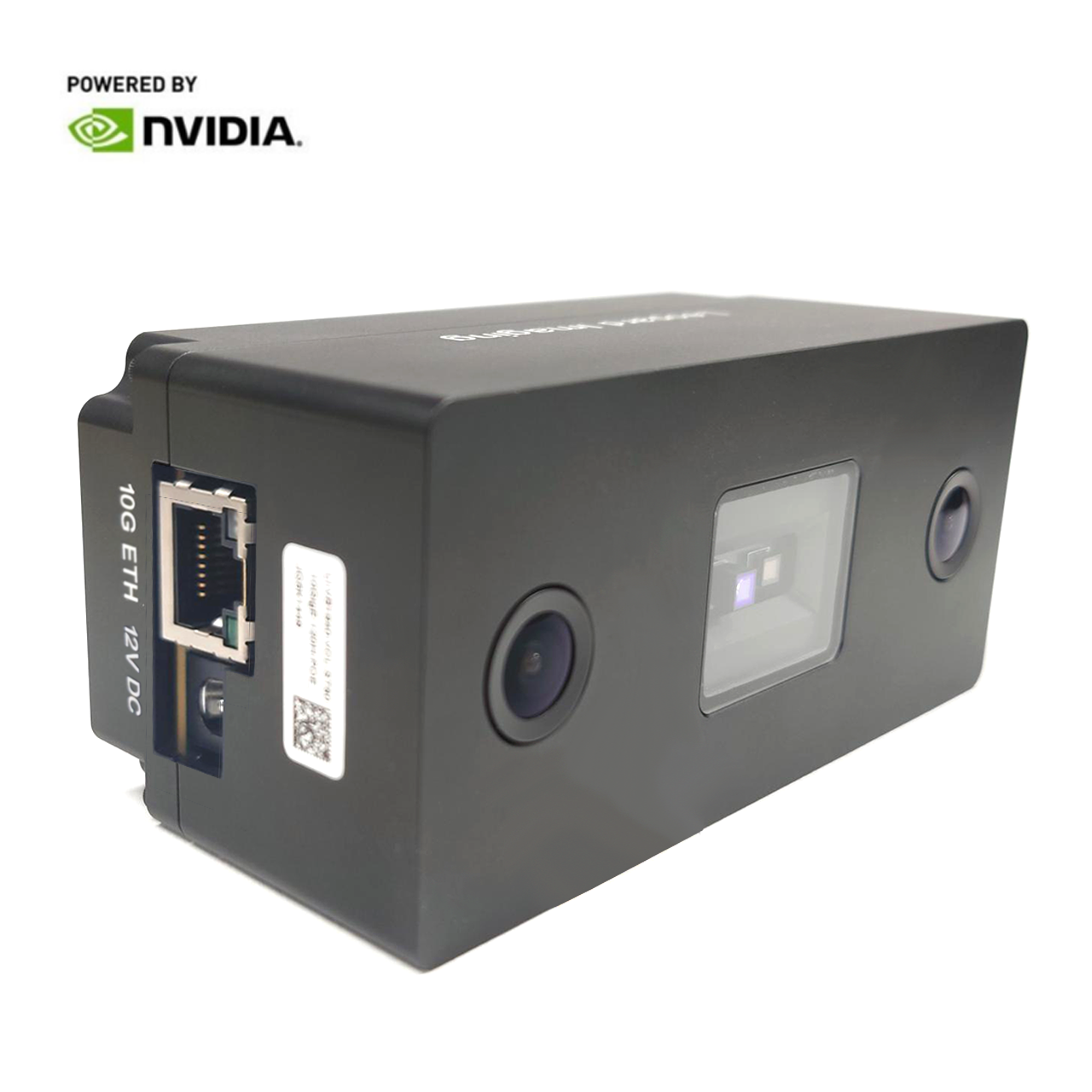

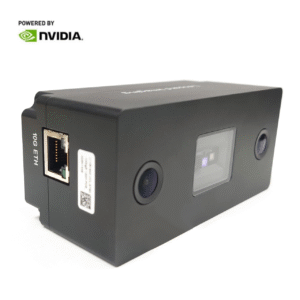

LI-VB1940-VCL-ST80-10GigE-120H

$628.00

Image	Product	Quantity
	LI-VB1940-VCL-ST80-10GigE-120H (CAMERA ONLY) 10 in stock (can be backordered)	1
	10G Ethernet Cable Available on backorder	1
	LI-PS12-01 87 in stock (can be backordered)	1

Available on backorder

For high volume order, please email sales@leopardimaging.com

EYE SAFETY: PASS IEC 60825 STANDARD

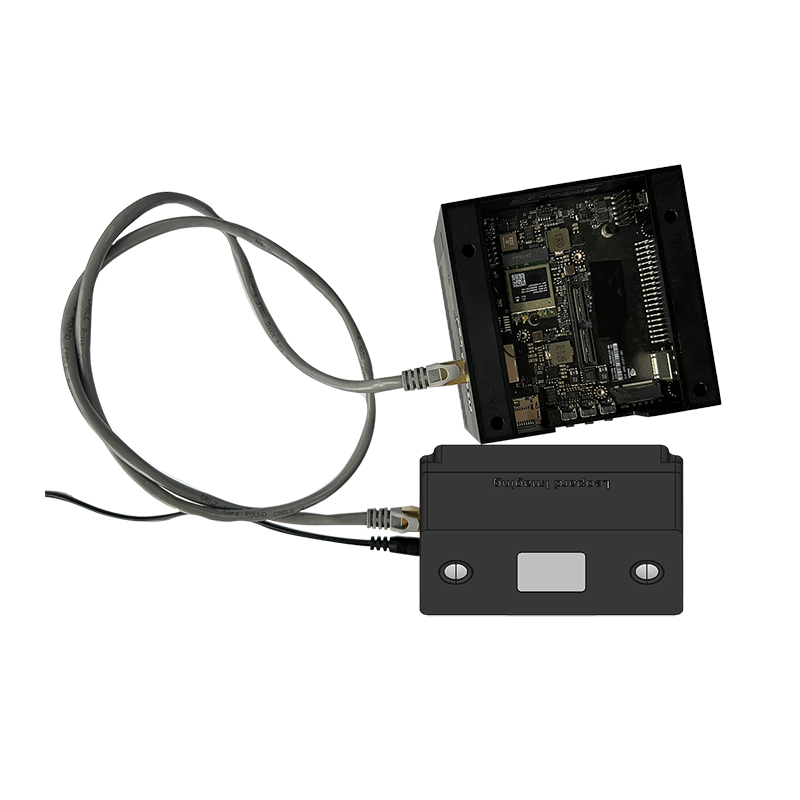

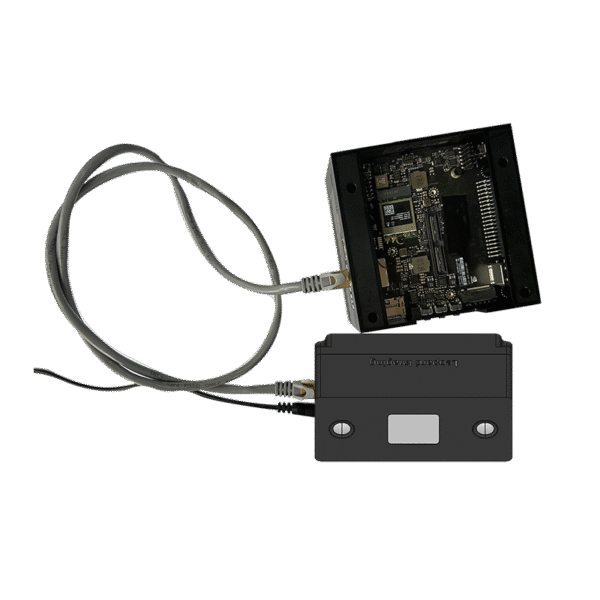

Compatible with NVIDIA® Jetson AGX Orin™ and IGX Orin™ Developer Kit
STMicroelectronics 5.1MP Global Shutter Image Sensor VB1940
Single IR illuminator and single IR dot projector
Lattice® CertusPro-NX FPGA
AQrate® 10GB Ethernet PHY Transceiver
Laser Projector Specifications:	940nm Wavelength
	110˚ (H) x 77˚ (V) Field of Illumination (FOI)
	10935 Dot in FOV
Quantity of Sensor:	2
IMU (Inertial Measurement Unit):	BMI088
IR Filter:	Visible + 940 nm band pass filter
Color / Mono:	RGB-IR
Resolution:	2560 (H) x 1984 (V)
Optical Format:	1/2.5″
Pixel Size:	2.25 x 2.25 μm
Lens FOV:	120˚ horizontal
Baseline:	80 mm
Power Supply:	12 VDC external power supply
Part#:	LI-VB1940-VCL-ST80-10GigE-120H

If you need to download the driver, please contact:support@leopardimaging.com

In Cabin Automotive
– Gesture Recognition
– Iris Scanning
– Head Roll
– Eye Tracking
– Machine Vision

This camera is compatible with Nvidia Jetson platforms.

AGX Thor	AGX Orin	Orin NX	Orin Nano	AGX Xavier	Xavier NX	Nano	TX2	TX1	USB3.0	Raspberry Pi5	RB3 Gen2	IQ-9075 EVK
✔	✔	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A

For detailed Jetson driver with Jetpack version list: Click here
