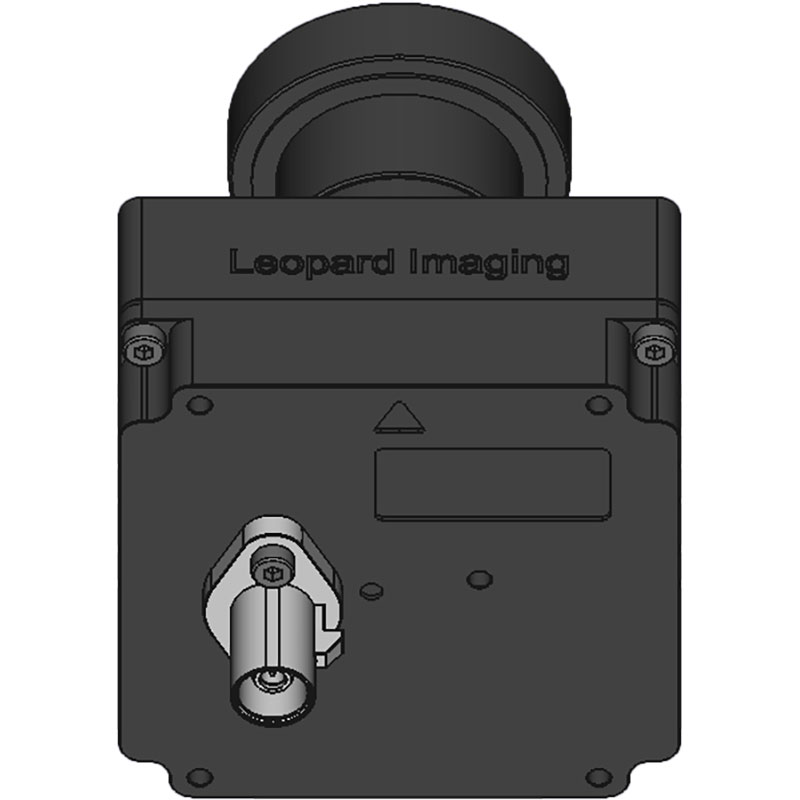

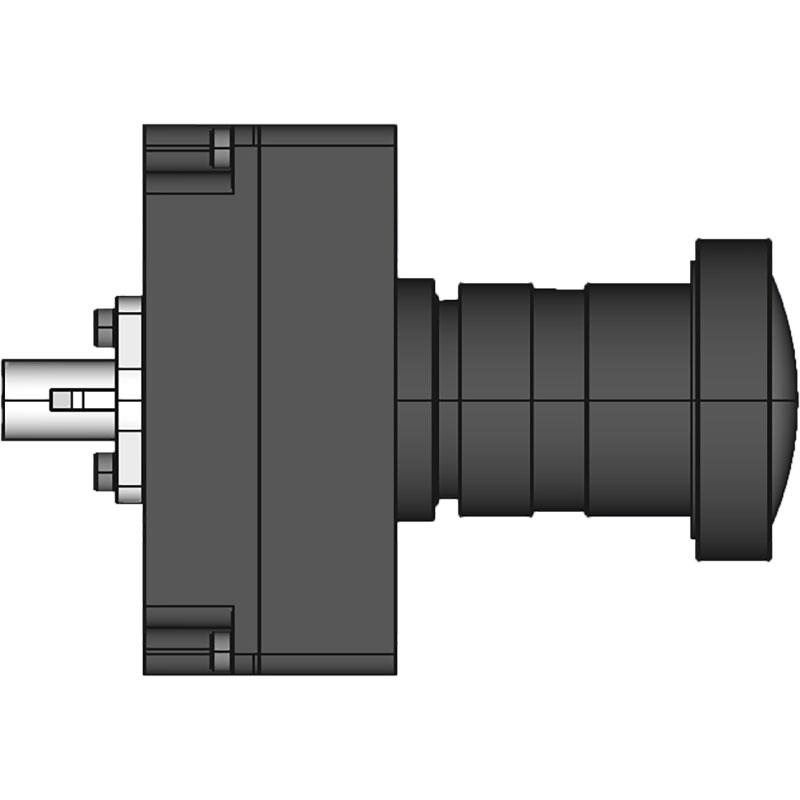

LI-IMX585-GM2B-110H

GMSL2 camera equipped with Sony STARVIS2 IMX585

$439.00

Image	Product	Quantity
	LI-IMX585-GM2B-110H (CAMERA ONLY) 10 in stock (can be backordered)	1
	LI-FCB-1T1-SS-3M-WP-S0 1818 in stock (can be backordered)	1

For high volume order, please email sales@leopardimaging.com

Sony STARVIS2 Diagonal 12.84 mm CMOS Active Pixel Type Sensor IMX585
Color
ADI GMSL2 serializer MAX96717G
650 nm IR cut Filter
Supports M20 Lens
Maximum Frame Rate:	12 bit: 60 fps @ all-pixel scan mode
	10 bit: 90 fps @ all-pixel scan mode
Output Format:	10-bit / 12-bit / 16-bit RAW
Resolution:	3856 (H) x 2176 (V) (active pixels)
Optical Format:	1/1.2″
Pixel Size:	2.9 x 2.9 μm
Power Supply Range:	9 ~ 19 VDC
Waterproof:	No waterproof
Lens:	FOV H 110°

If you need to download the driver, please contact:support@leopardimaging.com

IoT
Drone
Robots

Default Version:

The default lens is unglued, which helps our customers to adjust the focus and/or change the lens.
