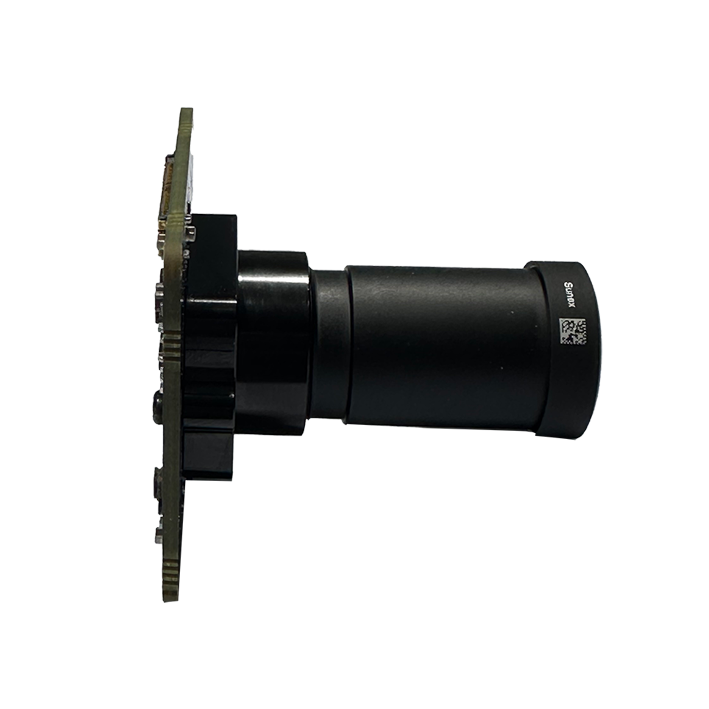

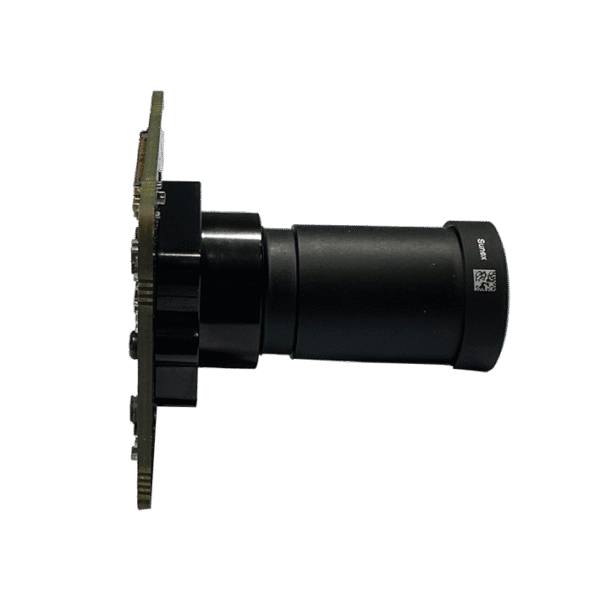

5MP Global Shutter Color MIPI USB30 Camera Module
$599.00
For high volume order, please email sales@leopardimaging.com
| OmniVision 1/1.45″ CMOS 5MP Image Sensor OG05C10 | |
| Global shutter | |
| USB 3.0 Super Speed support | |
| RAW data output without compression | |
| Active Pixels: | 2464 (H) x 2064 (V) |
| Pixel Size: | 3.45 μm x 3.45 μm |
| Color / Mono: |
Color |
| Current Consumption: |
307 mA @ 5V (2448 x 2048 @ 14.7fps) |
| Focal Length: | 5.17 ± 5% mm |
| Field of View: | 102˚ horizontal |
| IR Filter: |
650nm IR CUT Filter |
| Part#: | LI-USB30-OG05C10-MIPI-102H |
If you need to download the driver, please contact:support@leopardimaging.com
Machine Vision Camera
Logistics Application
Industrial Bar Code Scanning
Robotics
Intelligent Transportation System
Factory Automation
| Nvidia JETSON Camera Kit: | Coming soon… |
1. LI-OG05C10-MIPI-102H x 1
2. LI-USB30 Main board x 1
3. LI-CSLINK-IPX-TESTER x 1
4. FAW-1233-02 (200 mm) x 1
This camera is compatible with our USB 3.0 Tester and Nvidia Jetson platforms.
| AGX Thor | AGX Orin | Orin NX | Orin Nano | AGX Xavier | Xavier NX | Nano | TX2 | TX1 | USB3.0 | Raspberry Pi5 | RB3 Gen2 | IQ-9075 EVK |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | ✔ | N/A | N/A | N/A |
For detailed driver: Click here
Camera Tool Source Code in C#
Capture & Display
RAW to RGB Conversion
Save file as BMP & RAW format
Color Matrix
Register access function
