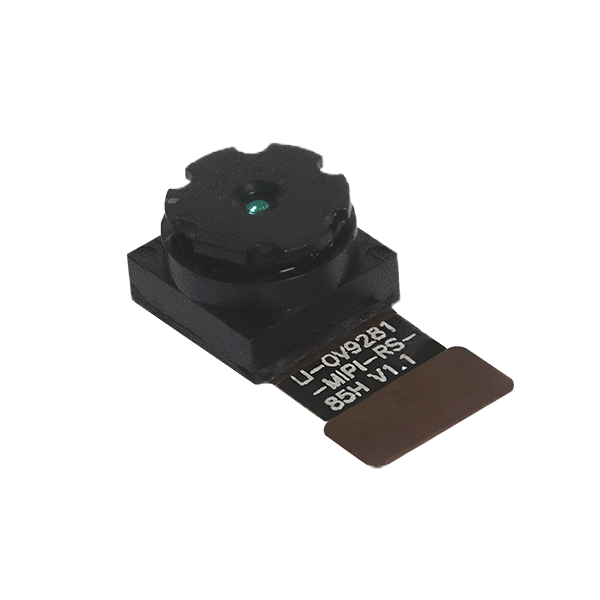

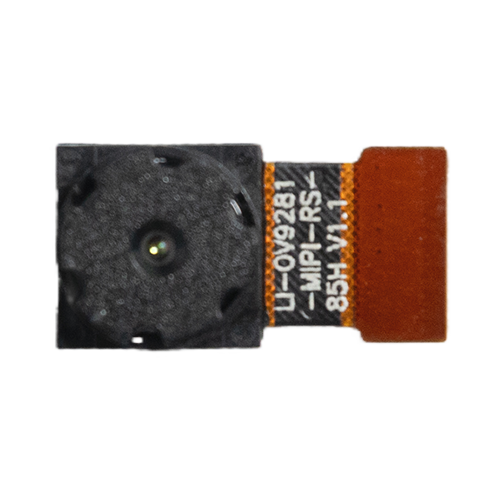

1MP RAW OV9281 MONO mobile camera
$59.00
243 in stock (can be backordered)
For high volume order, please email sales@leopardimaging.com
| Focusing Range: | 22cm ~ Infinity |
| Focal Length: | 2.3mm |
| F Number: | 2.2 |
| FOV (H): | 86.6° |
| TV Distortion: | < -20% |
| Sensor: | Global Shutter OV9281 Mono |
| Maximum Frame Rate: | 120 fps @ 1280 x 800 |
| Interface: | 2-lane MIPI CSI-2 |
| Module Size: | 8 x 8 mm |
If you need to download the driver, please contact:support@leopardimaging.com
This camera is compatible with our USB 3.0 Tester and Nvidia Jetson platforms.
| AGX Thor | AGX Orin | Orin NX | Orin Nano | AGX Xavier | Xavier NX | Nano | TX2 | TX1 | USB3.0 | Raspberry Pi5 | RB3 Gen2 | IQ-9075 EVK |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | ✔ | N/A | N/A | N/A |
For detailed driver: Click here
| No. | Name | No. | Name | No. | Name | No. | Name | No. | Name |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SID | 6 | CAM_SDA | 11 | GND | 16 | MIPI_CLK- | 21 | DVDD1V2 |
| 2 | GPIO | 7 | RESET/SHUTDOWN | 12 | MIPI_D0+ | 17 | GND | 22 | IOVDD1V8 |
| 3 | GND | 8 | GND | 13 | MIPI_D0- | 18 | MIPI_D1+ | 23 | GND |
| 4 | XCLK | 9 | FSIN | 14 | GND | 19 | MIPI_D1- | 24 | AVDD2V8 |
| 5 | CAM_SCL | 10 | STROBE | 15 | MIPI_CLK+ | 20 | GND | 25 | AGND |
