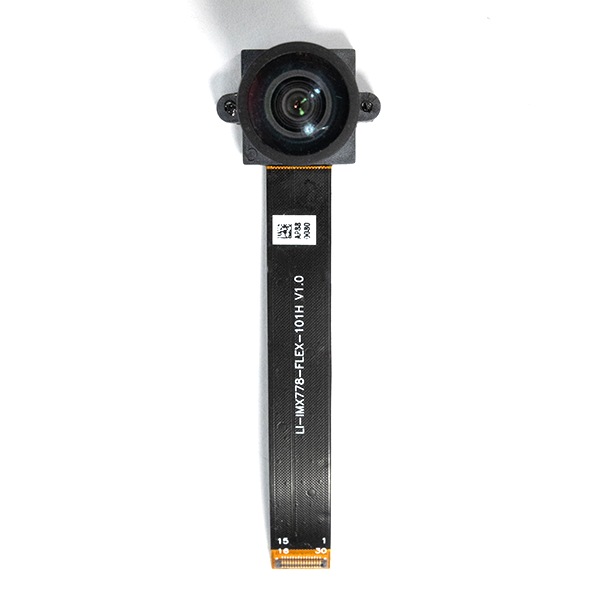

IMX778 MIPI camera compatible with Qualcomm® RB3 Robotics Gen 2 Development Kit and Qualcomm® Dragonwing RB8 Development Kit
$199.00
9 in stock
For high volume order, please email sales@leopardimaging.com
| Supported Platform: | Qualcomm® RB3 Gen 2 Vision Kit |
| Qualcomm® IQ-9075 evaluation kit (RB8) | |
| NOTE: Development Kit is NOT included in the product. LI-MIPI-FLEX-ADP-RB5 adaptor board is needed for the use on the above platforms. For more details, contact us. | |
| Sensor Type: | Sony Diagonal 6.4 mm STARVIS CMOS Sensor IMX778 |
| Optical Format: | 1/2.8″ |
| Aperture, F/#: | 2.6 |
| Effective Focal Length: | 2.4 mm |
| Resolution: | 3856 (H) x 2176 (V) (active pixels) |
| Pixel Size: | 1.45 x 1.45 μm |
| Output Format: | 10-bit / 12-bit RAW data |
| Maximum Frame Rate: | 10 bit: 90 fps @ all-pixel scan mode 12 bit: 60 fps @ all-pixel scan mode |
| Color / Mono: | Color sensor |
| Interface: | 4-lane MIPI CSI-2 |
| Lens FOV: | 101˚ horizontal |
| Focusing Range: | 1 m ~ Infinity |
| Weight | ~ 12 g |
If you need to download the driver, please contact:support@leopardimaging.com
IoT
Drone
Robots
This camera is compatible with our Qualcomm® RB3 Robotics Gen 2 and Qualcomm® Dragonwing IQ-9075 EVK platforms.
| AGX Xavier | Xavier NX | Nano | TX2 | TX1 | USB3.0 | RP5 | RB3 | RB8 |
|---|---|---|---|---|---|---|---|---|
| N/A | N/A | N/A | N/A | N/A | N/A | N/A | ✔ | ✔ |
For detailed driver with version list: Click here
