LI-IMX676-MIPI-185H
LI-IMX676-MIPI-185H

Camera Specification:

LI-IMX676-MIPI-185H

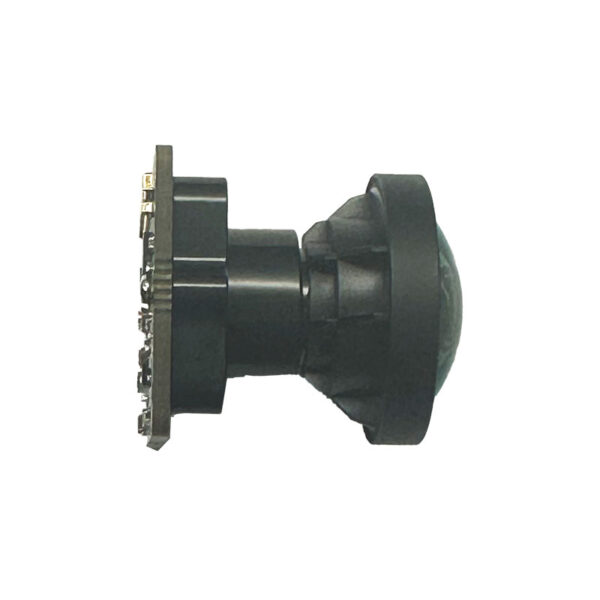

Fish-eye MIPI Camera Equipped with Sony STARVIS 2 Sensor IMX676

$309.00

16 in stock

For high volume order, please email sales@leopardimaging.com

Categories: Robotics/Aviation, MIPI Camera Modules, I-PEX MIPI Camera Modules, Rolling Shutter MIPI Cameras, 12.61MP-IMX676, Drone Cameras
Tags: ,
Sony STARVIS2 Diagonal 10.04 mm CMOS Image Sensor IMX676
Color sensor
Supports M12 lens
4-lane MIPI CSI-2
Active Pixels: 3552 (H) x 3552 (V)
Pixel Size: 2.0 x 2.0 μm
Output Format:
 10-bit / 12-bit RAW
Field of View (FOV):
 185˚ horizontal
IR Filter:
 650 nm IR cut filter
Weight:
 ~ 20 g

Technical Inquires:

If you need to download the driver, please contact:support@leopardimaging.com

IoT
Drone
Robots

This camera is compatible with our USB 3.0 Tester and Nvidia Jetson platforms.

AGX Thor AGX Orin Orin NX Orin Nano AGX Xavier Xavier NX Nano TX2 TX1 USB3.0 Raspberry Pi5 RB3 Gen2 IQ-9075 EVK
N/A ✔ ✔ ✔ N/A N/A N/A N/A N/A ✔ N/A N/A N/A

For detailed driver: Click here

Nvidia JETSON Camera Kit: Coming soon…
