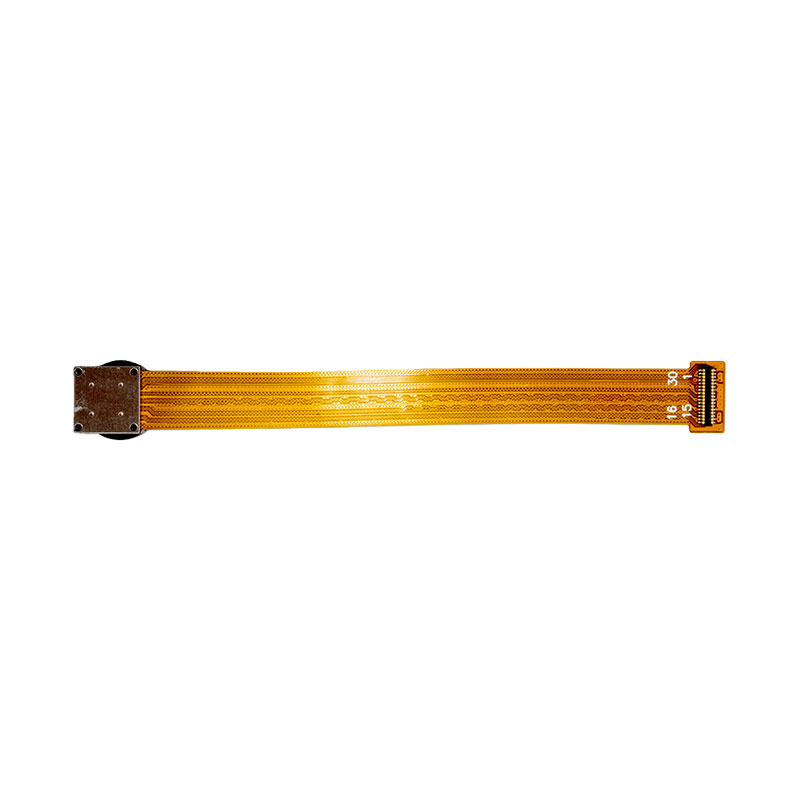

LI-AR0246-FLEX-80H
LI-AR0246-FLEX-80H

Camera Specification:

LI-AR0246-FLEX-80H

$89.00

6 in stock

For high volume order, please email sales@leopardimaging.com

Categories: Platform Partners, Onsemi, Hyperlux LH, AR0246, Qualcomm, IQ-9075 EVK, Robotics/Aviation, MIPI Camera Modules, Mobile Sensor Modules, LI-AR0246-FLEX
Tags: ,
Supported Platform:
 Qualcomm® Dragonwing IQ-9075 EVK
  NOTE: 1.The development kit is NOT included.
  2.No additional adapter board or cable is required for use on the above platform.
Sensor: ON Semiconductor 2MP CMOS digital image sensor AR0246
Optical Format: 1/4″
Aperture, F/#: 2.8 ± 5%
Effective Focal Length: 2.3 ± 5% mm
Resolution: 1920 (H) x 1080 (V) (active pixels)
Pixel Size: 2.0 x 2.0 μm, Back Side Illuminated (BSI)
Output Format: 12-bit RAW
Frame Rate: Linear: 1080p @ 60 fps
  LI-HDR (2exp): 1080p @ 30 fps
eHDR (3 exp): 1080p @ 30 fps
eDR (1 exp): 1080p @ 30 fps
Color / Mono: Color sensor
Interface: 2-lane MIPI (2 lanes, 1 Gbps/lane)
Focusing Range:
 35cm ~ Infinity
Lens FOV: 80˚ horizontal
Weight: ~ 2g

Technical Inquires:

If you need to download the driver, please contact:support@leopardimaging.com

IoT
Security
Robots

This camera is compatible with our USB 3.0 Tester and Nvidia Jetson platforms.

AGX Thor AGX Orin Orin NX Orin Nano AGX Xavier Xavier NX Nano TX2 TX1 USB3.0 Raspberry Pi5 RB3 Gen2 IQ-9075 EVK
N/A ✔ ✔ ✔ N/A N/A N/A N/A N/A ✔ N/A N/A N/A

For detailed driver: Click here
