LI-USB30-IMX454-MIPI-092H
LI-USB30-IMX454-MIPI-092H
LI-USB30-IMX454-MIPI-092H
LI-USB30-IMX454-MIPI-092H
LI-USB30-IMX454-MIPI-092H

Camera Specification:

LI-USB30-IMX454-MIPI-092H

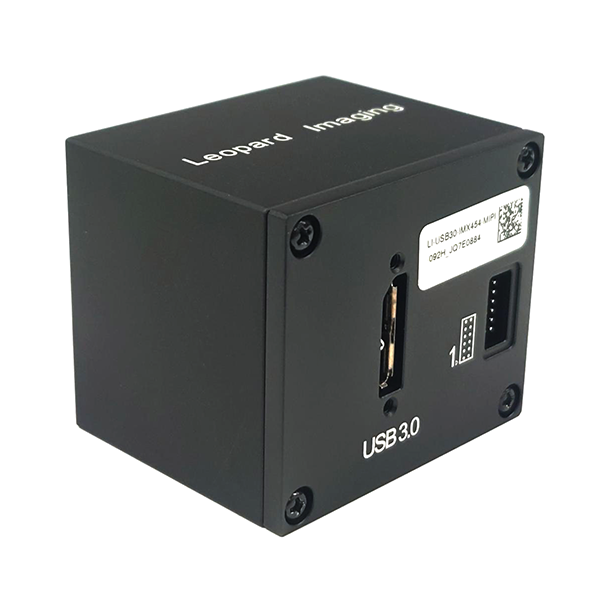

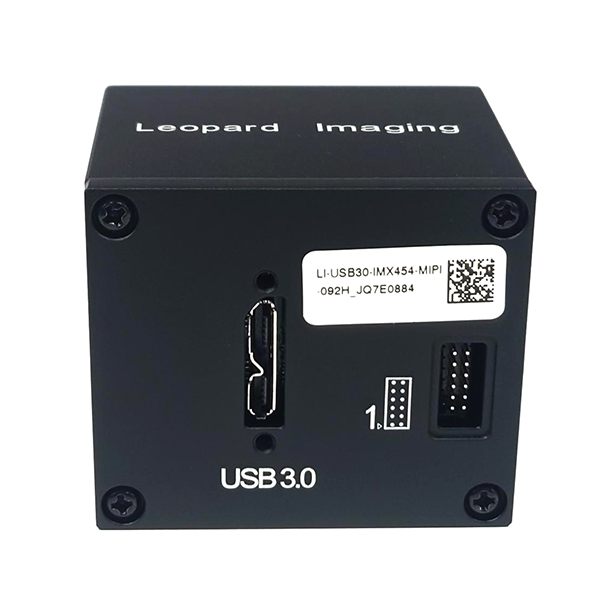

IMX454 USB 3.0 MIPI Camera
For pricing contact sales@leopardimaging.com

Image Product Quantity

LI-USB30-IMX454-MIPI-092H (CAMERA ONLY)

14 in stock (can be backordered)
1

LI-USB30-LR Cable

Available on backorder
1
This product is currently unavailable.

For high volume order, please email sales@leopardimaging.com

Categories: Multispectral Cameras, USB 3.0 Cameras
Tags: , , , , , ,
Sony Diagonal 6.46 mm (Type 1/2.8) CMOS Image Sensor IMX454
Multispectral Imaging Camera
USB 3.0 Super Speed support
Default M12 lens
Supports up to 41 channels
Support Camera Tool Source Code in Python API
Resolution: 1937 (H) x 1097 (V) (active pixels)
Frame rate: 1948 x 1097 @ 30 fps
Optical format: 1/2.8″
Pixel size: 2.9 x 2.9 μm
Power: USB 3.0 + 5 VDC power source
Part: LI-USB30-IMX454-MIPI-092H

Agriculture
Food Inspection
Industrial
Spectral Analysis

Camera Tool Source Code in Python API
Capture & Display
RAW to wavelength image in range of 450nm to 850nm at 10nm intervals
Save file as PGM, ENVI, csv format
